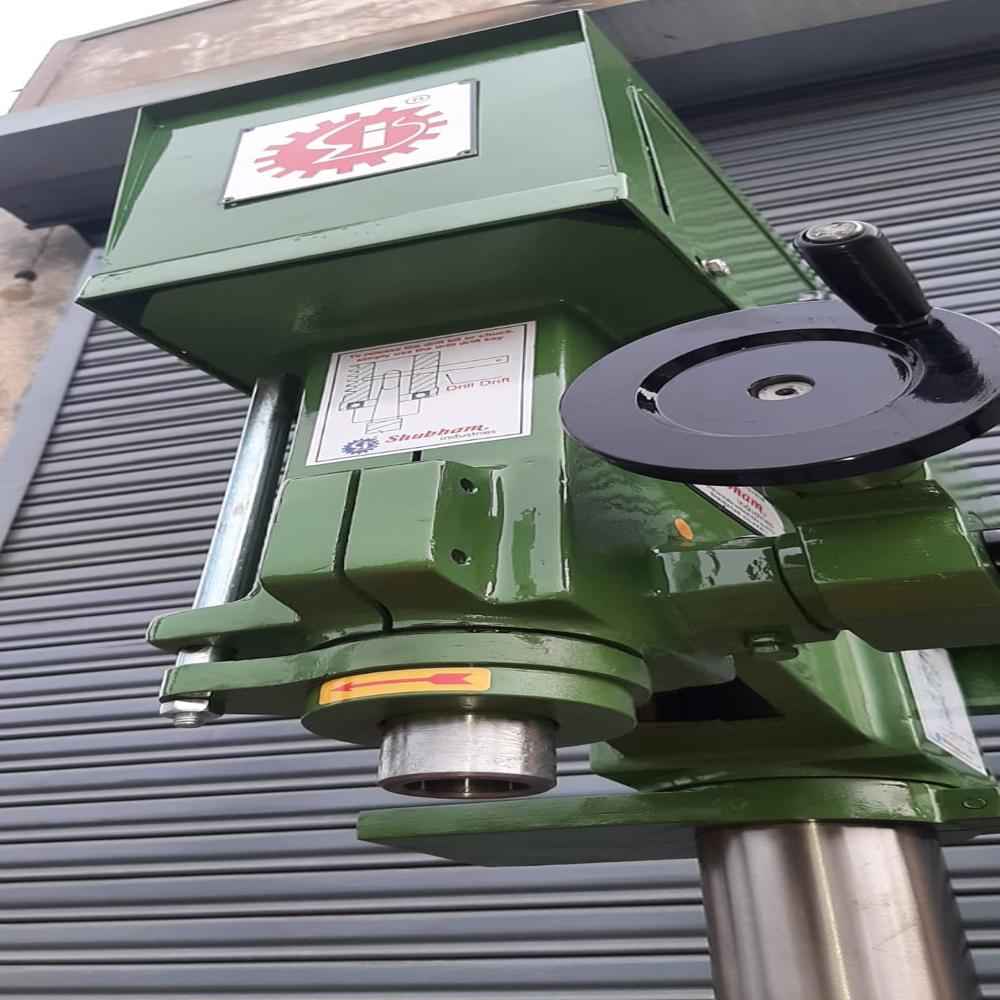

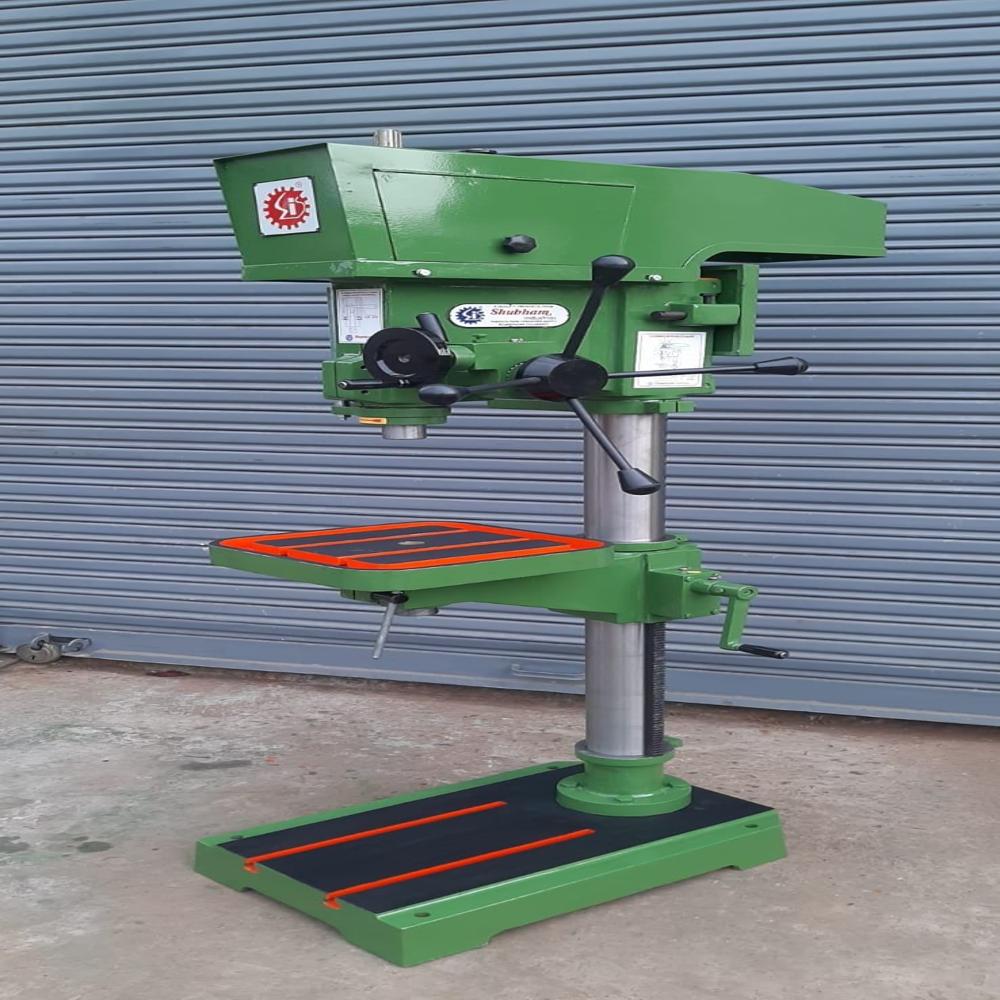

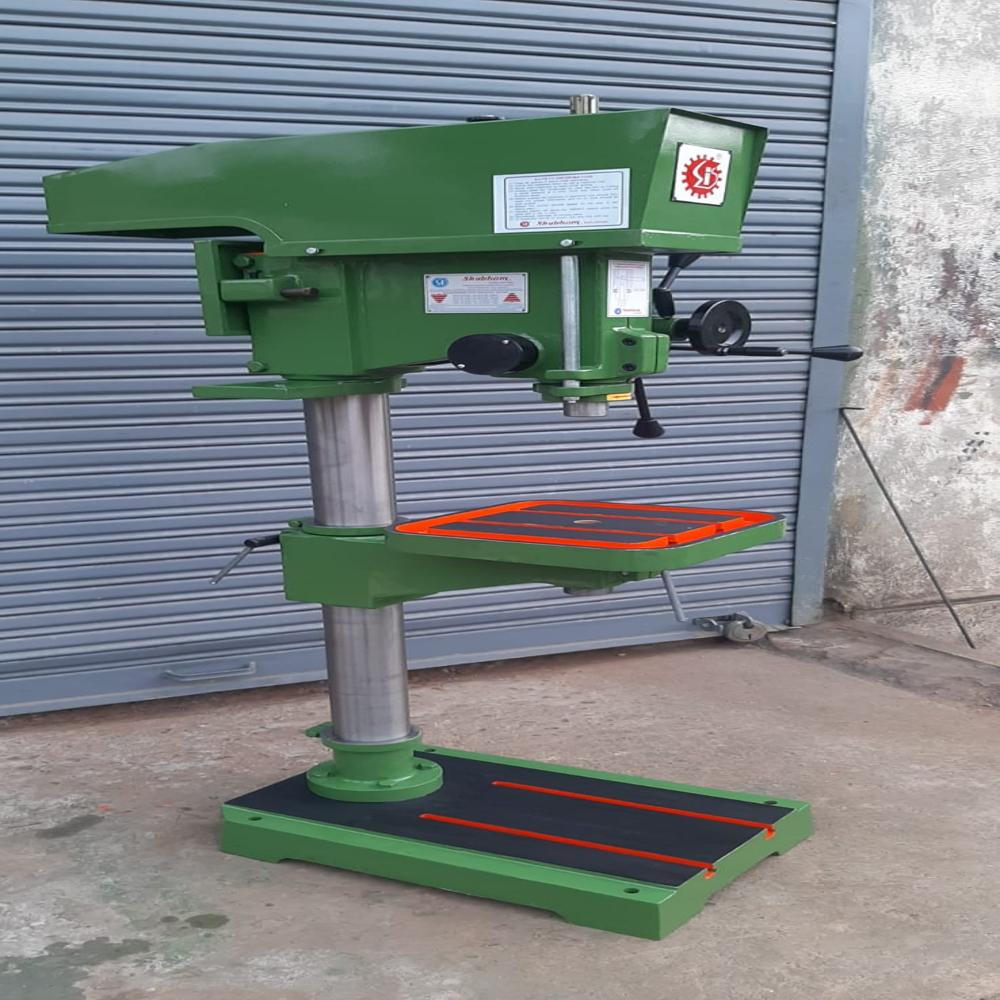

25mm Pillar Drill Machine Without Accessories

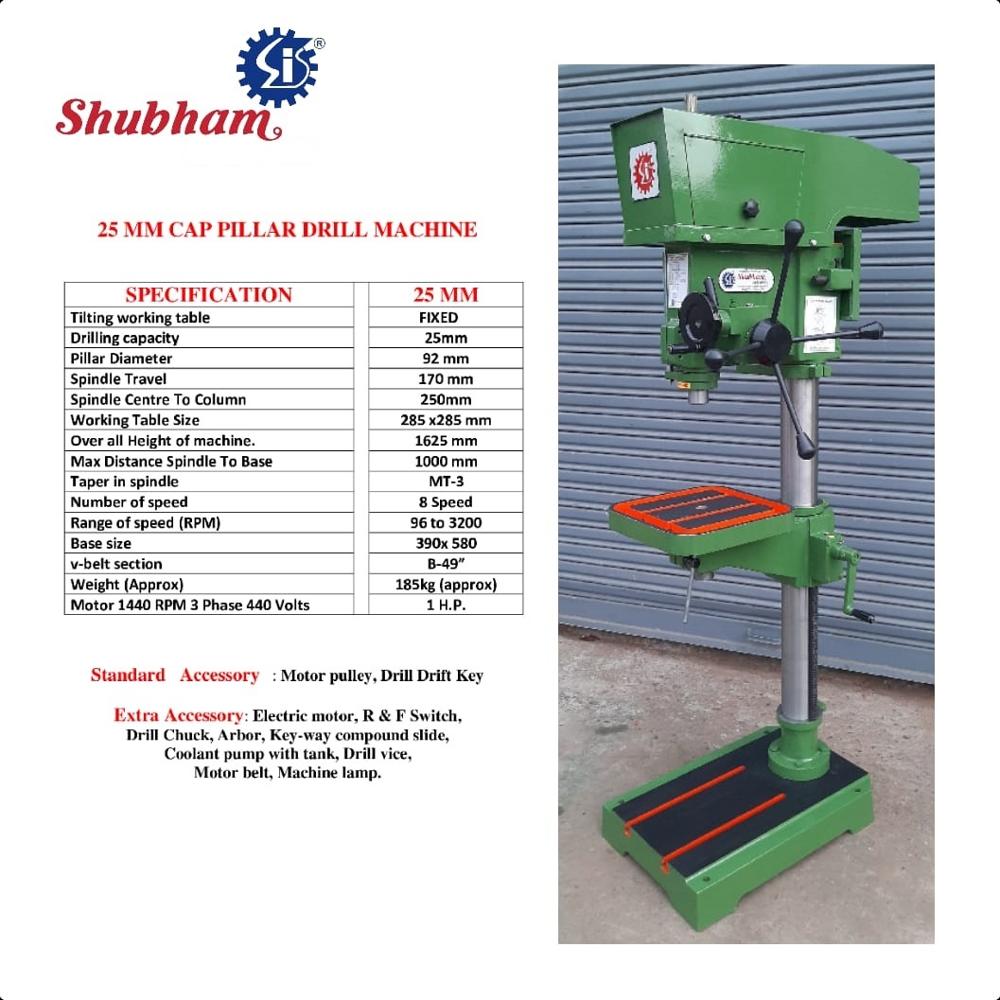

Technical Specification                                   (Model:-25 mm)

Tilting Working Table:                                             Fixed

Drilling Capacity:                                                      25 mm.

Diameter Of Pillar:                                                    92 mm

Travel Of Spindle:                                                     170 mm

Spindle Center To Column Face:                           250 mm

Working Table Size:                                           285 x 285 mm.

Over All Height Of machine:                                 1625 mm

Max. Dist. Spindle To Base:                                    1000 mm.

Machine Base:                                                         390 x 580  mm.

V-belt:                                                                           B-49

Spindle Nose:                                                             M.T-3

No. Of Spindle Speed:                                                8

Range Of  Speed In RPM:                                     96-3200 rpm

H.P of Motor:                                                          1 H.P 3 Phase

Motor Speed:                                                           1440 RPM

Type Of Feed:                                                           Manual

Net Weight:                                         185 kgs. (Without Motor)
