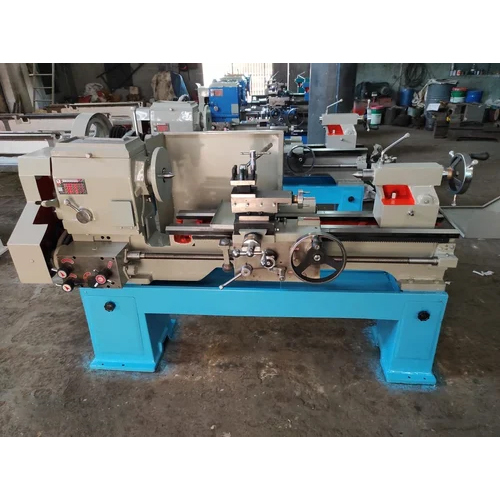

NAGRANI Brand 6 Feet Medium Duty Lathe Machine Without Accessories.

Price 148000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

NAGRANI Brand 6 Feet Medium Duty Lathe Machine Without Accessories. Specification

Product Type
Horizontal

Material
Casting

Cutting Thickness
Metal Millimeter (mm)

Cutting Speed
35 to 500 rpm RPM

Engraving Area
230 mm Square Millimeter (mm2)

Graphic Format Supported
Other

CNC Or Not
Normal

Automatic Grade
Semi Automatic

Control System
Human Machine Interface

Max. Swing Diameter
425 mm Millimeter (mm)

Voltage
3 Phase Volt (v)

Weight (kg)
850 Kilograms (kg)

Dimension (L*W*H)
2050 x 540 x 1160 Millimeter (mm)

Capacity
230 mm Kg/hr

Feature
High Performance, High Efficiency, Stable Performance, Simple Control

Color
Green

Warranty
Yes

NAGRANI Brand 6 Feet Medium Duty Lathe Machine Without Accessories. Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Against Delivery (CAD)

Supply Ability
5 Pieces Per Month

Delivery Time
25 Days

Packaging Details
Standard Packing & as Per Client Requirement.

Main Export Market(s)
Asia, South America, Western Europe, Middle East, Africa

Main Domestic Market
All India

About NAGRANI Brand 6 Feet Medium Duty Lathe Machine Without Accessories.

Technical Specificaion	Model: DR-1/228	Model: DR-2/228	Model: DR-3/228
Distance of Center Over Flat Bed Ways	230 mm	230 mm	230 mm
Length of Bed	4' -6" (1370 mm)	5" -3 (1600 mm)	6' (1825 mm)
Swing Over bed	425 mm	425 mm	425 mm
SwingOver cross slide	230 mm	230 mm	230 mm
SwingIn gap	625 mm	625 mm	625 mm
Width of Bed	280 mm 11"	280 mm 11"	280 mm 11"
Bed Type	2 V & 2 Flat	2 V & 2 Flat	2 V & 2 Flat
HEAD STOCK OR MAIN SPINDLE
Spindle Nose (Threaded Type)	Dia 76 mm	Dia 76 mm	Dia 76 mm
Spindle Bore	53 mm 2.1/8"	53 mm 2.1/8"	53 mm 2.1/8"
Morse Taper in Spindle Sleeve	MT-4	MT-4	MT-4
Number of Spindle Speed	8	8	8
Range of Spindle Speed	35 to 500 rpm	35 to 500 rpm	35 to 500 rpm
TAIL STOCK
Spindle Diameter	53 mm 2.1/8"	53 mm 2.1/8"	53 mm 2.1/8"
Spindle Morse Taper	MT-4	MT-4	MT-4
Spindle Travel	165mm	165mm	165mm
THREADS PITCH
Metric - pitch	13 (1 TO 6mm)	13 (1 TO 6mm)	13 (1 TO 6mm)
English - Inches	19 (2 TO 24TPI)	19 (2 TO 24TPI)	19 (2 TO 24TPI)
Lead Screw Dia	Dia 32mm	Dia 32mm	Dia 32mm
FEEDS
Congitadinal	0.05 to 1.25mm	0.05 to 1.25mm	0.05 to 1.25mm
Cross Slide	0.0007 to 0.22mm	0.0007 to 0.22mm	0.0007 to 0.22mm
ELECTRICAL GENERAL
Motor	1.5HP 1440RPM	1.5HP 1440RPM	1.5HP 1440RPM
V Belt	B Section	B Section	B Section
Floor Space occurred in mm
(Approx.) L x W x H	1675x540x1160	1975x540x1160	2050x540x1160
Note:- Our extra model are Spindle hole 3. 1/8" (79mm). Extra Ordinary Deluxe under counter are Medium Duty Spindle hole 53mm & 79mm.
Standard Accessories
Induction Hardened Bed	Chuck Back Plate	Motor Pulley
Spindle Sleeve	2 Dead Centre	Change Gear Set
Extra Accessories
Norton Gear Box	Electric Motor	Dog Chuck	Rear Tool Post
Steady Rest	Follow Rest	Face Plate	True Chuck
Switch	V - Belt
